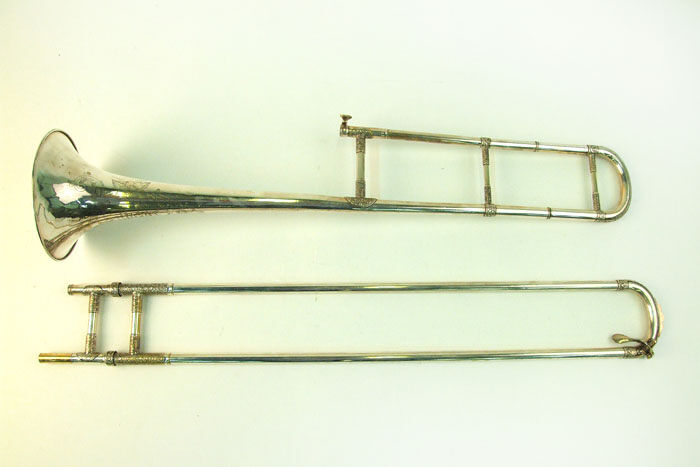

Tenor Trombone in B Flat

Catalogue number: 7.4

Original name: Tenor trombone in B flat.

Maker: Hawkes & Son.

Place of origin: London, c.1890-1900.

Serial number: 7745 [on bell].

Overall size: Slide: 778mm; main body: 699mm, bell diameter: 150mm.

Sounding length: 2699mm.

Bore: c 50mm from mouthpiece receiver: 10.6mm not expanding in 110mm from mouthpiece receiver; main tuning slide: descending slide, 11.4mm; ascending slide, 11.4mm; joint, 11.4mm; valve tuning slide: 11.6mm-13.1mm.

Diameter of mouthpiece receiver: 11.4mm.

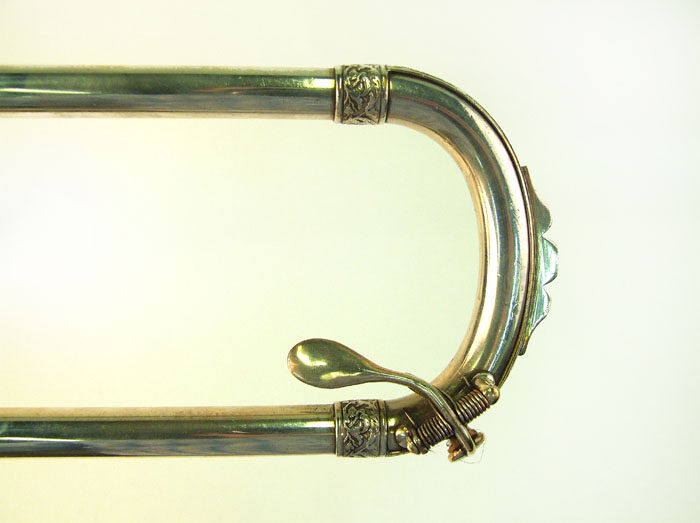

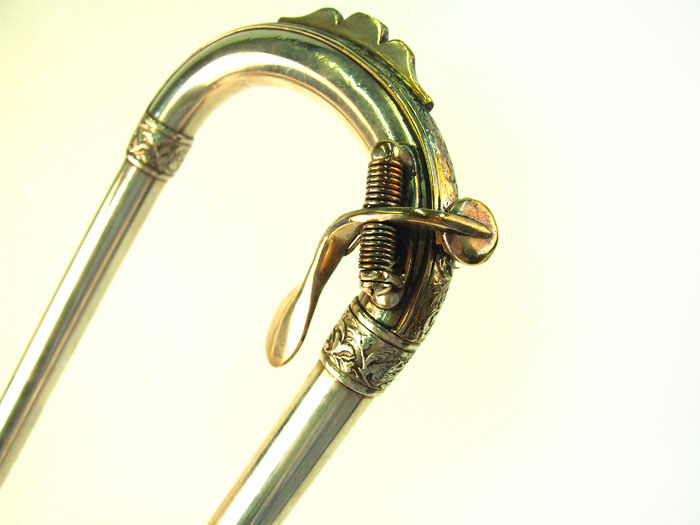

Technical description: Brass with silver plating. Decorative ferrules. Water key on slide. Repair to outer slide stay, joint. Main body tuning slide is not original.

Inscription: Engraved on bell: “EXCELSIOR / CLASS / HAWKES & SON / 28 / Leicester Square / LONDON”.

Repair history: Restored August - October 2000 by Paul Wilde.

Usable pitch: Plays at a’ = 450 Hz but uncertain due to the mis-matched slide.

Illustration references: See below.

Recording references: Click here.

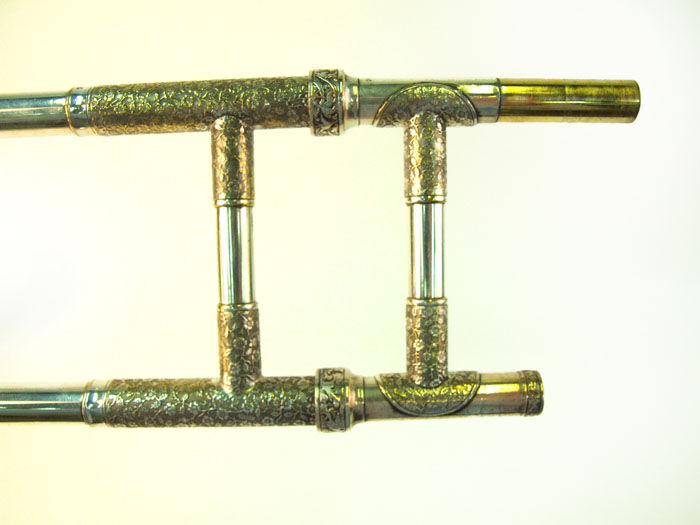

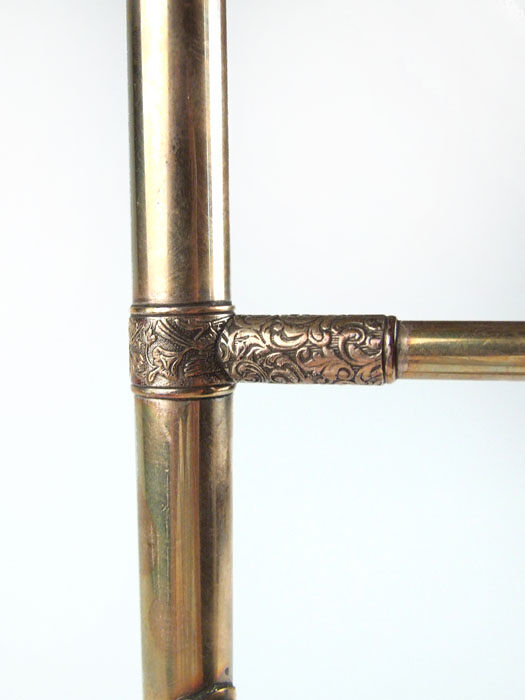

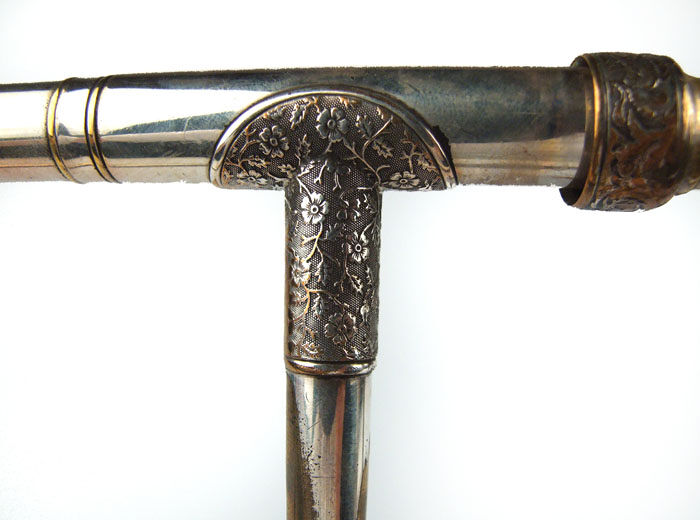

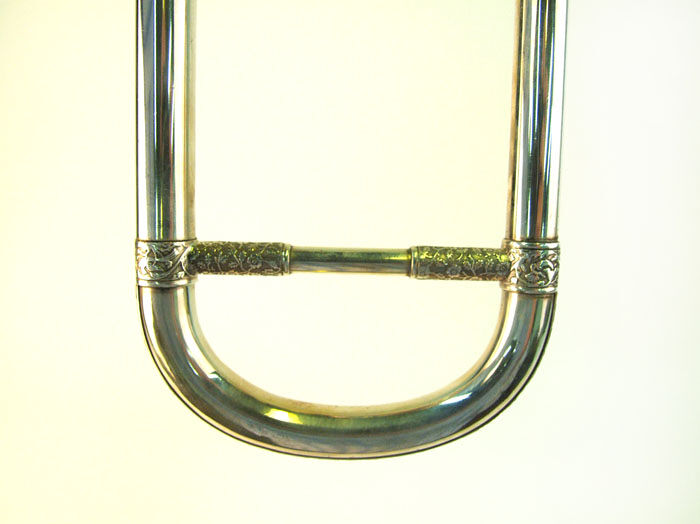

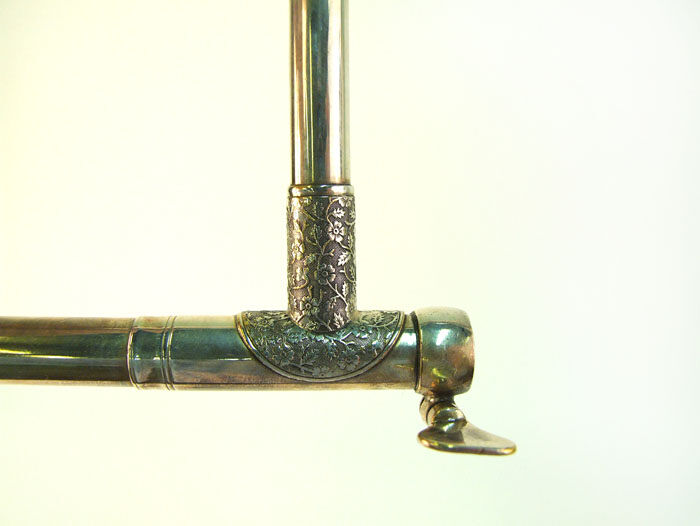

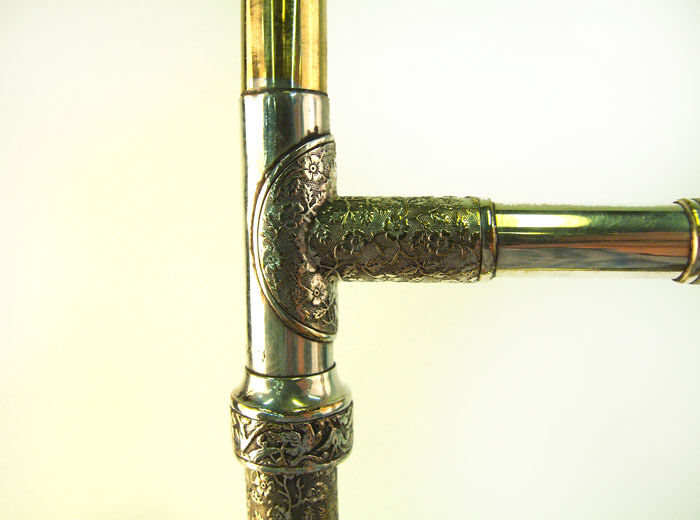

Gallery of Images
