Vox Humana in F

Catalogue number: 3.6

Original name: Vox humana in F.

Common name: Tenor oboe.

Type or system: Two keys.

Maker: Roustagneq.

Place of origin: Toulon, France, late 18 - early 19 Century.

Overall size: 761mm.

Diameter of reed receiver: 8.6mm.

Bore: Upper joint: 8.6mm - 13mm; lower joint: 13mm - 26.mm.

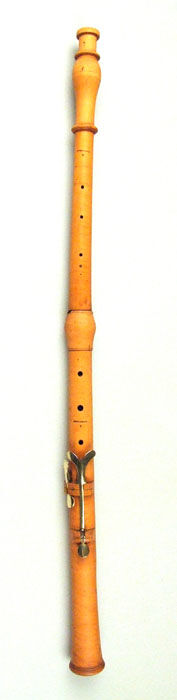

Technical description: Two sections in boxwood. Upper joint: 362.5mm; lower joint (including bell): 426mm.

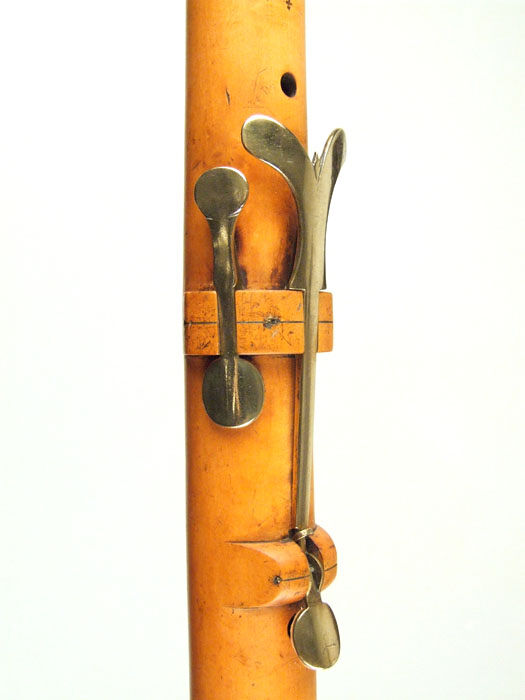

Two brass keys, round flat flap (flap design S ), mounted on raised blocks.

Low C key with swallow-tail touch piece. Springs attached to the body of the instrument. Evidence of a plugged hole (left hand, third finger) approx 12mm lower than existing hole.

Key work and finger holes

Finger hole diameter (av.)

Left hand, first finger:

T; 1.9mm

Left hand, second finger:

T; 1.9mm

Left hand, third finger:

T; 2.1mm

Right hand, first finger:

T; 5.5mm

Right hand, second finger:

T; 6.1mm

Right hand, third finger:

T; 5mm

Right hand, fourth finger:

D sharp/ E flat, low C

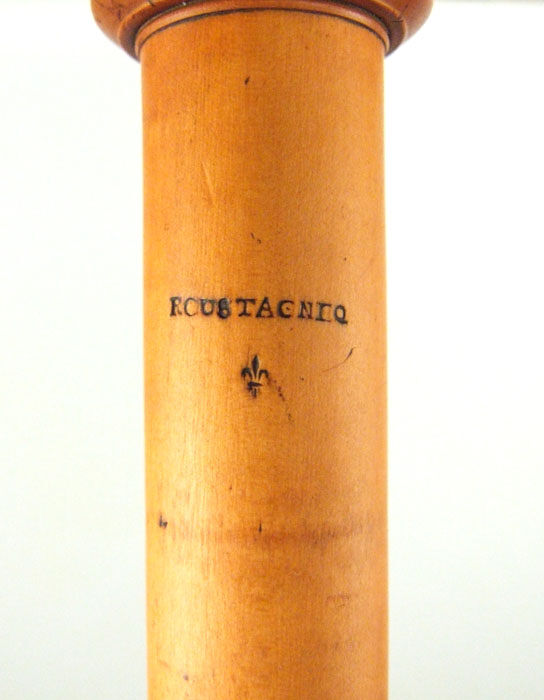

Inscription: Stamped on both joints: “ROUSTAGNEQ” / (motif: fleur-de-lis).

Faults: Cracks at the top of the lower joint A little warped.

Repair history: Cleaned, April 2000. Crook made by Matthew Dart, 2008. Pads replaced 2008.

Usable pitch: Plays at c.a’ = 415 Hz.

Performance characteristics: Intonation is bad, probably due to the warped wood.

Specific references: New Langwill Index, p.338.

Recording references: Click here

Illustration references: See below

Previous owner: William Bentley.

Previous collection numbers: A and B: Item 28.
